Melt booster pump for large-sized pipelines

Pipeline booster melt pump is suitable for high-temperature and high viscosity polymer melt reaction transportation and pressurization that require high output pressure, such as resin, chemical fiber, and other industries. It is generally installed in melt pipelines and used as a booster pump. The large-sized melt booster gear pump models provided by Zhengzhou Batte range from 2000CC-12000CC.

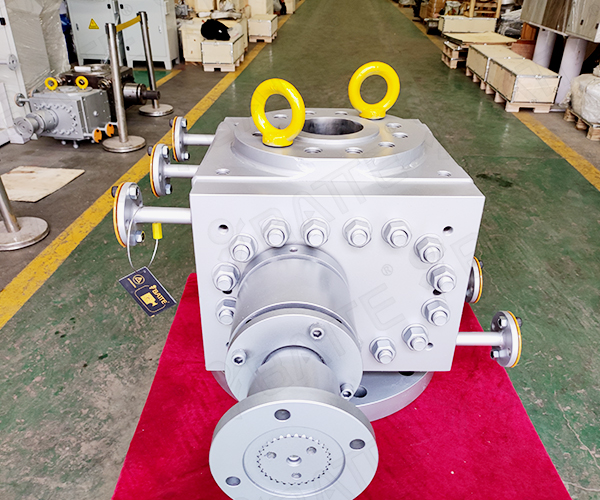

pipeline booster melt pump

Technical parameters of pipeline melt booster pump

Transmission medium viscosity: 3E-4~40000 Pa · s (0.3~400000CP)

Suction pressure: Vacuum (-0.00~-0.05MPa)~16MPa

Output pressure: 0-35MPa

Pressure difference: 25MPa

Operating temperature: ≤ 350 ℃

Heating method: heat medium jacket

Heating medium pressure: ≤ 1.6MPa

Melt booster pump

Installation of pipeline melt booster pump

It is driven by a motor, reducer, and universal coupling, usually installed horizontally; The melt booster gear pump belongs to a positive displacement forced delivery pump, and the pump output flow can be adjusted by adjusting the pump speed. It is recommended to use a frequency conversion speed regulation method to achieve near linear flow output of the gear pump.

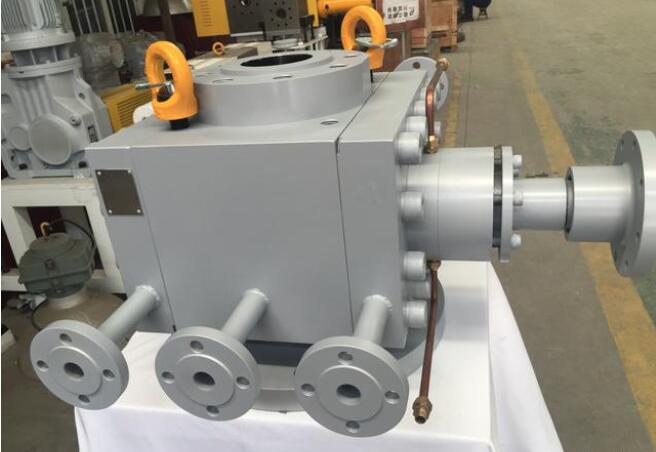

ZB-D high pressure pipeline booster melt pump

The melt gear pump products provided by Zhengzhou Batte can be applied to various processes in polymer industry production, including resin, chemical fiber, rubber and other industries. The conveying range of materials ranges from low temperature -50 ℃, low viscosity 0.1mPa · s solution to high temperature 350 ℃, high viscosity 40000Pa · s polymer melt. The operating pressure ranges from vacuum -0.09MPa to 40MPa. Provide different series of gear pump products for materials with different properties to meet the requirements of different production processes. The melt gear pump products provided by our company have the characteristics of precise structure, high accuracy, small pressure and flow pulsation, and long service life.
