What are the features of chemical stainless steel reactor kettle melt gear pump?

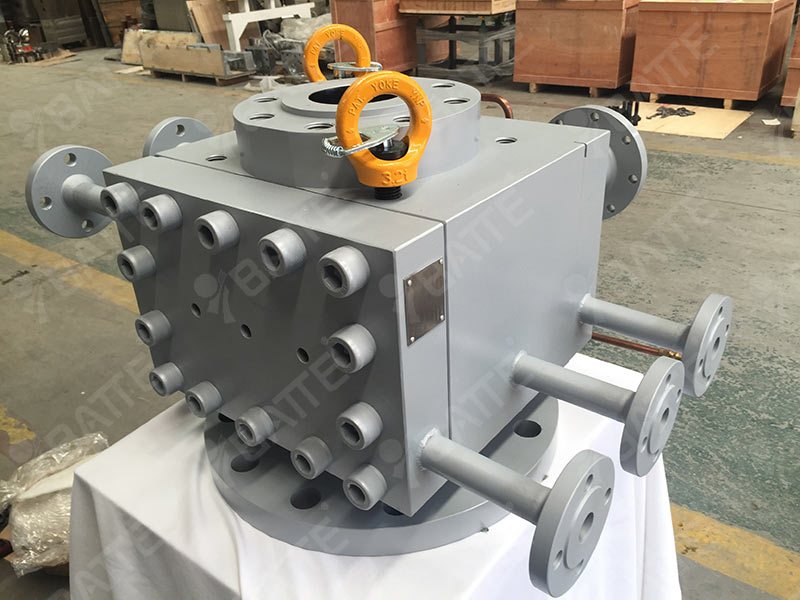

China melt pump for reactor kettle conveys medium and high viscosity media in vacuum reactor. The large flange design of suction port enables smooth suction of high viscosity media under vacuum conditions. Mainly used for high temperature and high viscosity polymer melt transport, such as resin, chemical fiber and other industries, generally installed in the lower part of the reactor, to make material pump. Or conveying medium of medium and high viscosity in vacuum reactor, it can make high viscosity medium smoothly inhaled under vacuum condition, and can finish conveying and pressurizing polymer materials under vacuum reaction condition. Mainly used in ABS, PS, PMMA, PBT, PT and other materials. What are the characteristics of melt pump for reaction kettle, which are explained below.

1、The reactor melt discharge pump gear adopts double curve tooth design, the pressure pulsation rate is lower; large flange mouth design, good self-priming performance (suction pressure: vacuum-0.08MPa), large viscosity range of conveying medium (1000~40,000,000cps).

2, Zhengzhou Batte melt pump for reactor kettle thermal effect is high, the pump body is heated by electric heating rod or heat-conducting oil, the temperature can reach 350 ° C; it optimizes the bearing lubrication design, effectively extending the service life of the equipment.

3, Reactor melt gear pump can choose packing seal, mechanical seal or both used together, which can effectively prevent the occurrence of material leakage. The pump body of gear pump for reaction kettle can be made of 304 or 316 stainless steel to convey corrosive media.

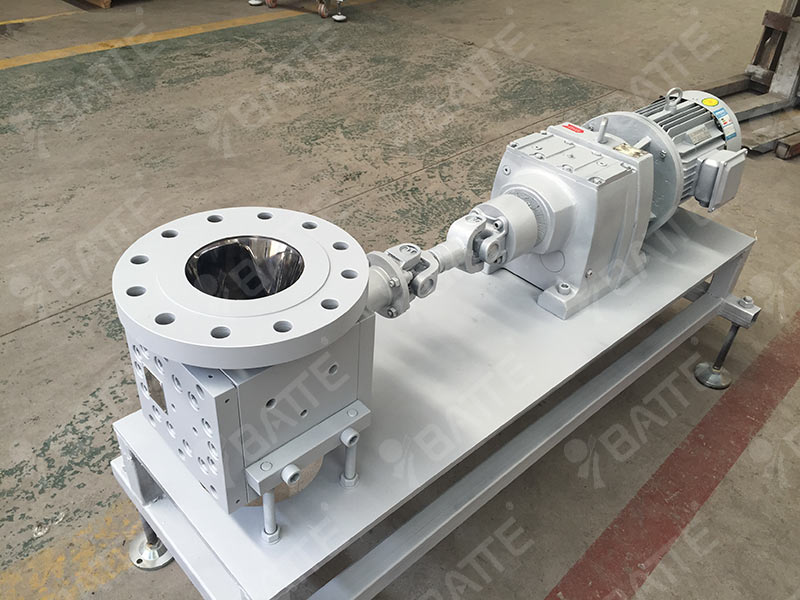

The melt pump for reactor is usually recommended for horizontal installation, horizontal installation, drive mode: motor + reducer + universal coupling failure rate is relatively low, and daily maintenance is also convenient.
