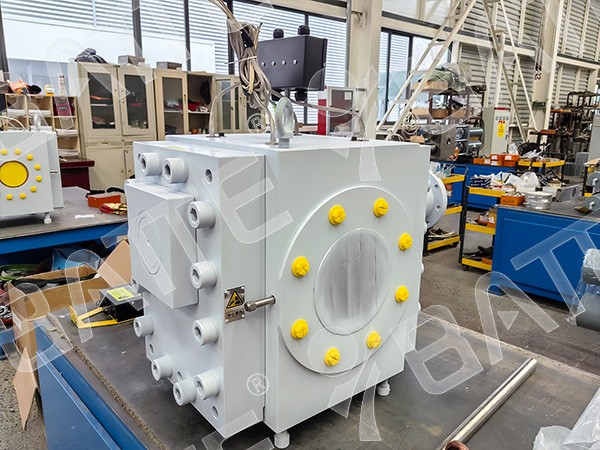

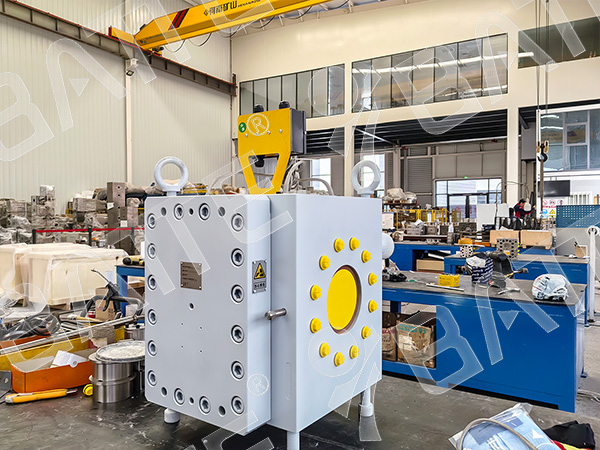

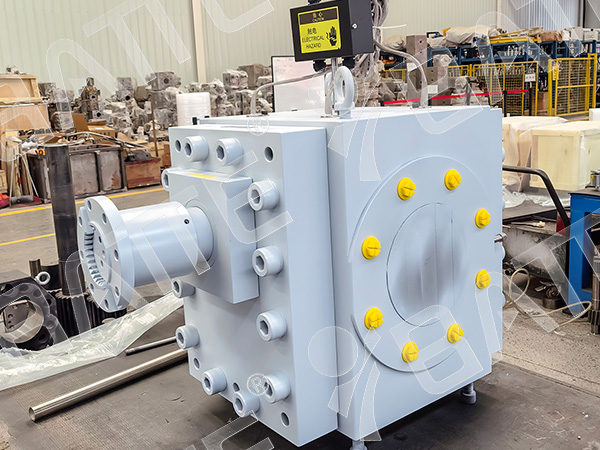

POE underwater cutting granulation extrusion melt pump

POE elastomer materials have the characteristics of high toughness, low modulus, and large viscosity fluctuations. In underwater cutting and granulation processes, unstable extrusion pressure can easily cause problems such as uneven particle shape, long and short particles, and bubbles. As the core stabilizing metering equipment of POE underwater cutting and granulation line, the melt pump is a key link to ensure stable granulation quality.

1、 Stabilize extrusion pressure and eliminate POE melt fluctuations

Batch differences and temperature changes in POE raw materials can cause fluctuations in melt viscosity, and it is difficult to maintain a constant pressure solely with the extruder screw. The melt pump relies on the principle of positive displacement forced conveying, independently measures and stabilizes pressure, isolates pressure fluctuations of the extruder, ensures stable pressure of the melt entering the die, avoids uneven cutting length and hollow defects caused by fluctuating pressure, and ensures consistency in the appearance of POE particles.

2、 Accurate quantitative feeding, stable output

The melt pump accurately measures the melt flow rate according to the rotational speed, without being affected by small changes in melt viscosity. Stable discharge flow rate matched with underwater cutting blade speed to achieve constant granulation capacity; At the same time, it reduces the load fluctuation of the extruder, lowers the current fluctuation of the main machine, and extends the service life of the extruder.

3、 Improve POE particle quality and reduce scrap rate

Stable pressure brings uniform discharge, and the flow rate of POE melt entering the underwater cutting hole is consistent, reducing adhesive particles, trailing particles, and irregular particles; Stable melt conveying also helps to eliminate internal bubbles in the melt, improve POE particle density, reduce defective products, and lower raw material loss.

4、 Optimize process fault tolerance and adapt to POE processing characteristics

POE elastomer has a narrow processing window and is sensitive to process parameters. After installing a melt pump, the extruder can focus on plasticization, and the melt pump is responsible for stabilizing and metering, achieving decoupling of plasticization and metering. The process adjustment is simpler, with a higher tolerance for fine tuning of raw material formulas and temperature fluctuations, making it easier for factories to switch between different grades of POE production.

5、 Reduce equipment loss and save production costs

Stable back pressure reduces the wear of extruder screws and barrels, and minimizes frequent overloading of the main engine; Stable working conditions reduce the frequency of shutdown debugging, improve the continuous operation time of the production line, and enhance overall production efficiency.

In the POE underwater cutting and granulation production line, the melt pump is not only used to transport the melt, but also the core process of stabilizing pressure and precise measurement. Solving the granulation problem caused by the viscosity fluctuation of POE melt, stabilizing the particle shape, and improving the yield rate are key supporting equipment for improving the quality and efficiency of underwater granulation of elastomers.
