What Is a Rubber Extrusion Melt Pump?

What Is a Rubber Extrusion Melt Pump?

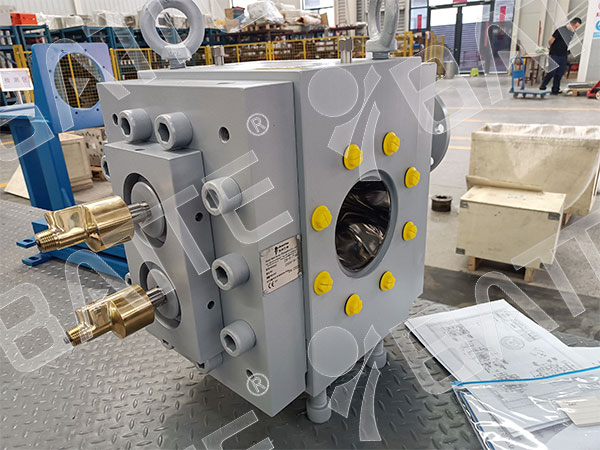

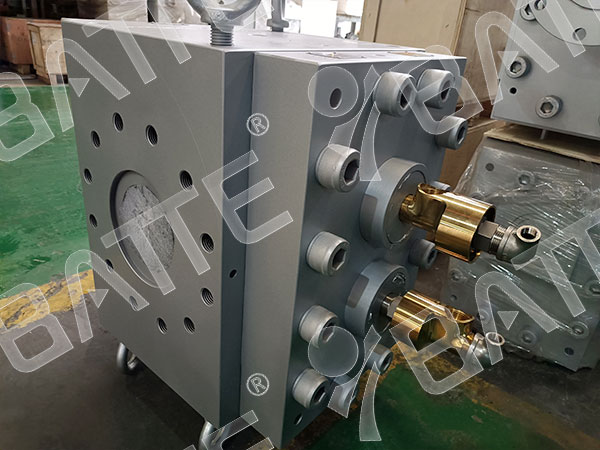

A rubber extrusion melt pump is a positive-displacement conveying device designed for high-viscosity, highly elastic rubber materials. It is typically installed between the extruder and the die head. The pump utilizes meshing gears to create a continuously varying sealed volume, enabling smooth conveyance, continuous pressurization, and stable, metered delivery of the rubber melt.

Unlike conventional conveying methods, melt pumps do not rely on fluctuations in screw pressure to move the material. Instead, they deliver a fixed displacement, effectively isolating pressure pulsations generated by the extruder. This ensures that the rubber entering the die maintains relatively stable pressure and flow rates, thereby improving product consistency and production performance.

Why Is a Melt Pump Necessary for Rubber Extrusion?

I. Smooth Pressure Control to Improve Product Dimensional Consistency

Rubber is a typical high-viscosity, highly elastic material that is significantly affected by screw speed, feed conditions, and temperature fluctuations. In traditional extrusion processes, pressure tends to fluctuate, leading to unstable product dimensions, wall thickness deviations, and reduced surface quality.

Installing a melt pump for rubber extrusion reduces the range of outlet pressure fluctuations, enabling more uniform material delivery and improving the dimensional accuracy and appearance of the finished products.

II. Stable, Metric Delivery to Ensure Continuous and Uniform Material Output

Melt pumps operate on the positive displacement principle, delivering a fixed volume per revolution. They are less susceptible to disruptions caused by upstream feeding fluctuations, ensuring continuous and uniform material output.

For continuous extrusion products such as automotive sealing strips, rubber hoses, and cable sheaths, a stable flow rate helps mitigate product variations and improves the operational efficiency of the entire production line.

III. Reducing Extruder Load and Extending Equipment Service Life

Conventional extruders perform both plasticization and system pressurization simultaneously. Prolonged operation under high back pressure tends to accelerate wear on the screw and barrel, while increasing the motor’s operational load and energy consumption.

When paired with a rubber extrusion melt pump, the pressurization process is handled by the melt pump, allowing the extruder to focus on plasticization and feeding. This helps reduce the system’s operational load, optimize equipment performance, extend the service life of core components, and simultaneously reduce energy consumption during production.

IV. Reducing Shear on the Compound to Mitigate the Risk of Scorching

Rubber materials are highly sensitive to temperature and shear forces. Excessive shear can cause the compound to overheat, leading to scorching, performance degradation, and other defects.

The rubber extrusion melt pump features an optimized flow path and a low-shear tooth profile. While ensuring sufficient conveying capacity, it minimizes shear heat in the compound, maintains stable conveying, and better preserves the rubber’s original physical and chemical properties.

V. Suitable for High-Viscosity, High-Flow Production Conditions

For rubber materials with relatively high Mooney viscosity, the rubber extrusion melt pump employs a large-diameter feed structure and a high-rigidity shaft system design. This reduces feed resistance, enhances material suction capacity, and is suitable for continuous, high-flow production scenarios.

A wide range of rubber materials—including natural rubber, styrene-butadiene rubber (SBR), nitrile rubber (NBR), EPDM, and silicone rubber—can be processed by selecting the appropriate model based on specific process requirements.

In which industries are rubber extrusion melt pumps used?

Rubber extrusion melt pumps are widely used in:

Automotive seal extrusion

Rubber hose production

Cable sheath extrusion

Conveyor belt production

Tire tread extrusion

Rubber sheet and rod production

Extrusion of rubber profiles

Continuous conveyance of high-viscosity elastomers

Depending on the characteristics of different materials and production capacity requirements, pumps with varying displacement, pressure ratings, and drive configurations can be selected to meet diverse production needs.
