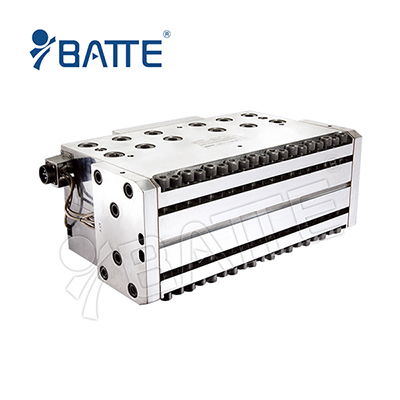

XPS Foam Sheet Die
- Theory:XPS Foam Sheet Die
- Structure:XPS Foam Sheet Die
- Power:Electric or oil
- Pressure:High Pressure
- Certificate:CE
- We are here to help.Easy ways to get the answers you need.
Parameters of the XPS terms Sheet Die
Item Specification Diesteel :P20/5CrNiMo
Material XPS Width of the die: 600mm/900mm/1200mm
Thickness of the product :20-120mm
adjustable Way of flow: passage streaml
XPS terms Sheet Die Application:applicance,medical,food,car,electronic
we adopted high quality alloy steel,mirror steel and our 4 CNC milling machine and 7 drilling machines to make our extrusion dies for export .
T-die capable of producing crust foam board less than 45mm with the upper die lip adjustable, the under lip replaceable and flexible restriction rod adjusting equipment.
T-die capable of producing crust foam board less than 45mm with the upper die lip adjustable, the under lip replaceable and flexible restriction rod adjusting equipment.
application:applicance,medical,food,car,electronic
| Item | Specification |
| Die steel | P20/5CrNiMo |
| Material | XPS |
| Width of the die | 600mm/900mm/1200mm |
| Thickness of the product | 20-120mm adjustable |
| Way of flow passage | streamlined |
| Voltage | 220V/50hz |
| Heating type | heating inside |
| Heater element | stainless steel heating rod |
| Mode of connection | closed cycled connection |
| Fastening piece | 12.9 high strength |
| Precision of polishing | Polishing precision of the stream surface of the die lip 0.03-0.04(μm)other parts is 0.04-0.05(μm) |
| Galvanization | the stream surface of the die head are treated by chrome treatment. Thickness 0.03-0.04(μm),hardness: 60-65Rockwellc,the chrome treatment thickness of the ektexine is 0.01-0.02mm. |
| Installation | according costumer’s request |
| Way of charging | central ring charging way |
